Micro Gimbal Stabilizer

Innovative anti-shaking camera module

Product with MGS

Our Micro Gimbal Stabilizer (MGS) technology has already been already utilized in many non-smartphone applications, including mobile surveillance cameras, car cameras, smart glasses, body worn cameras and drones.

The MGS technology enables various features in the industry, including dynamic object recognition in low-light and shaky conditions. This is crucial in safety-related applications like surveillance, self-navigating robots and self-driving.

Product Introduction

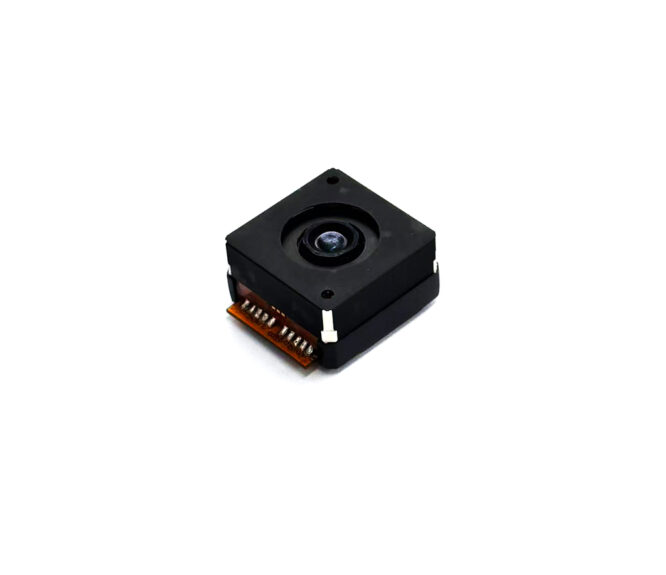

MGF188A/B

View Specifications

Specification	Description
Axis:	2-Axis
Size:	18.8×18.8×15.8/18.8mm (Module: MGF188A/B)
Focus:	Fixed Focus
Max. FOV:	160°
Max. compensation angle:	±5° (Pitch&Yaw)
Weight:	12g
Supported Sensors:	≤1/2.8” Sony IMX335 Sony IMX675 Sony IMX317

The MGS cameras have been employed in body-worn cameras, drones, and smart glasses.

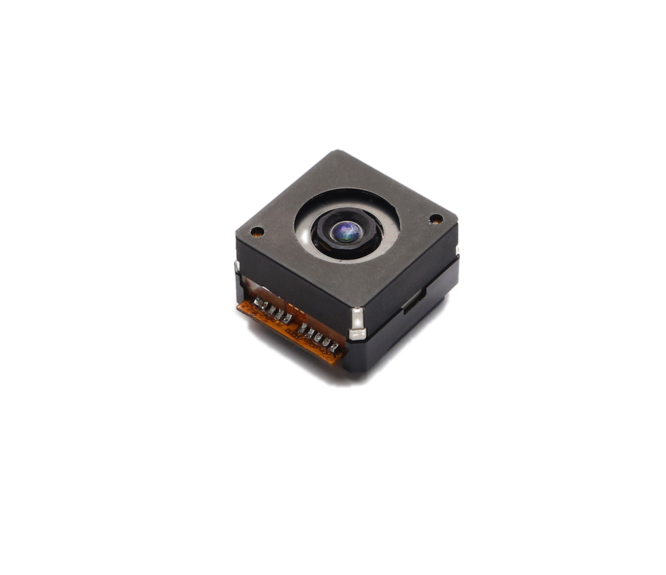

MGA196A

View Specifications

Specification	Description
Axis:	3-Axis
Size:	≤20×20×12mm
Focus:	Fixed/Auto Focus
Max. FOV:	120°
Max. compensation angle:	±5° (Pitch&Yaw) ≤±8° (Roll)
Weight:	≤10g
Supported Sensors:	≤1/2” Sony IMX577 Sony IMX586

The MGS cameras have been employed in body-worn cameras, drones, and smart glasses.

MGA190A

View Specifications

Specification	Description
Axis:	2-Axis
Size:	19×19×9.9mm
Focus:	Fixed/Auto Focus
Max. FOV:	120°
Max. compensation angle:	±5° (Pitch&Yaw)
Weight:	5g
Supported Sensors:	≤1/3” Sony IMX258 Samsung S5K3P3 Omni-Vision OV8865

The MGS cameras have been employed in body-worn cameras, drones, and smart glasses.

DIVE INTO THE KEY FEATURES

With the large maximum compensation angle up to ±8° and high-sensitivity STARVIS image sensors, our MGS enables cameras with up to 16× longer exposure time to take clear images even at night. As the MGS cameras are very compact,
the MGS cameras are suitable for most compact trendy wearable devices. Unlike Electronic Image Stabilizer (EIS), since the MGS employs purely mechanical mechanisms for anti-shaking, the MGS cameras do not require high computational power and add any delay to the images. With the latest 5G technology, our MGS allows hard real-time, ultra-low-latency, smooth and shape live streaming videos for life-critical applications.

Anti-shaking performance comparisoN

Low light + shaking conditions

The MGS can significantly reduce blur especially in low-light conditions, the technology thus improves image quality as shown the below comparison pictures.
