Bring clear images to mobile phones

Product with MGS

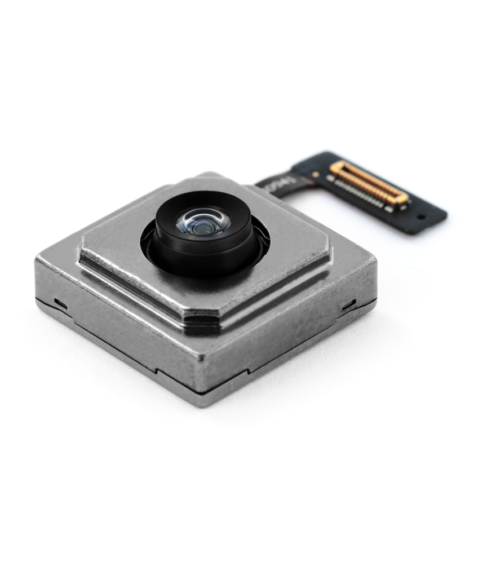

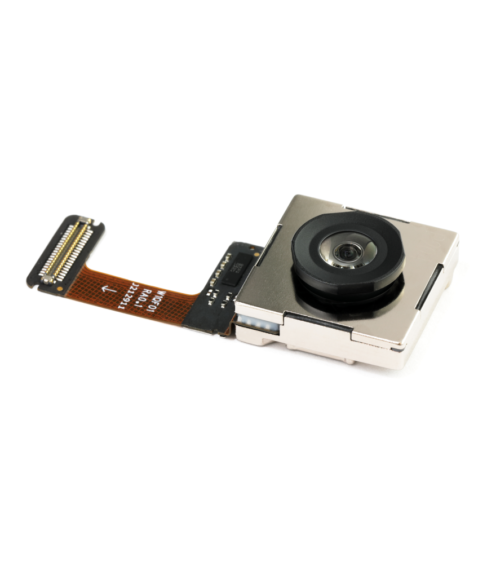

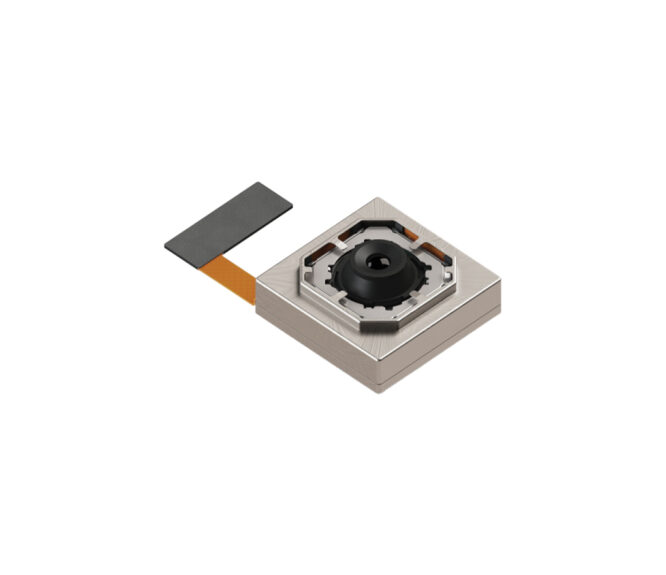

Our Micro Gimbal Stabilizer (MGS) technology is coming with a compact mechanical design, so the camera module is small enough to embed in most smartphones, especially the size of our MGS camera module is 40% smaller than the closest competitor.

Product Introduction

MGA198A

View Specifications

Specification	Description
CCM Size	19.8×23.4×7.7 mm (L×W×H)
Max. Comp. Angle	±5°
Max. Comp. Axis	2 (Pitch & Yaw)
Max. View Angle	87°
Max. Sensor Resolution	50 M
Lens Barrel	Φ12.22mm
Focus	Auto Focus
Supported Sensors	≤1/1.3''

The final Compact Camera Module (CCM) sizes depend on the Compensation (Comp.) angles, sensor models and lens barrels.

MGA189A

View Specifications

Specification	Description
CCM Size	18.9×18.9×6.9mm (L×W×H)
Max. Comp. Angle	±6°
Max. Comp. Axis	2 (Pitch & Yaw)
Max. View Angle	120°
Max. Sensor Resolution	50 M
Lens Barrel	Φ11mm
Focus	Auto Focus
Supported Sensors	≤1/1.56''

The final Compact Camera Module (CCM) sizes depend on the Compensation (Comp.) angles, sensor models and lens barrels.

MGA181A

View Specifications

Specification	Description
CCM Size(L×W×H):	18.1×18.1×6.6 mm
Max.Comp.Angle:	±5°
Max. Comp.Axis:	2 (Pitch & Yaw)
Max. View Angle:	120°
Max. Sensor Resolution:	50 M
Lens Barrel:	Φ11 mm
Focus:	Auto Focus
Supported Sensors:	≤1/1.56''

The final Compact Camera Module (CCM) sizes depend on the Compensation (Comp.) angles, sensor models and lens barrels.

Dive into the Key Features

Our MGS technology is a module-tilt design by using our patented spring and innovative Flexible Printed Circuit (FPC) structure. Thus, we can downsize a traditional handheld gimbal into a mini size camera module, which is around half the size of a human thumb.

Our MGS is similar to all existing and more inferior anti-shaking technology at mass production due to the similarity structure of Voice Coil Motor (VCM). Because of that, we can provide turnkey production solutions for our partners with manufacturing MGS in a quick and cost-effectively way.

Our design also comes with auto-calibration software, which our manufacturer can use the software automatically calibrate MGS by compensating minor manufacturing errors plus optimizing the anti-shaking performance. This helps our partners to reduce the manufacturing cost and improve the quality.
